32 MhZ Crystal Oscillator
The oscillator provides a highly accurate clock signal at 32 MHz with 50% duty cycle in typical conditions. The maximum load cap supported by this IP is given as 11 pF and can be varied by using 10 bit tuning controls at a resolution of 170 fF.
The clock maintains an exceptionally low deviation from its frequency of operation at all PVT corners owing to the high Quality factor (Q=47000) value of the crystal itself.
This IP features excellent noise performance that includes a phase noise of -146 dBc at an offset of 10 KHz from the operating frequency. The IP has a design that can be easily ported across various foundries and processes upon request.
The clock maintains an exceptionally low deviation from its frequency of operation at all PVT corners owing to the high Quality factor (Q=47000) value of the crystal itself.
This IP features excellent noise performance that includes a phase noise of -146 dBc at an offset of 10 KHz from the operating frequency. The IP has a design that can be easily ported across various foundries and processes upon request.
View 32 MhZ Crystal Oscillator full description to...
- see the entire 32 MhZ Crystal Oscillator datasheet
- get in contact with 32 MhZ Crystal Oscillator Supplier

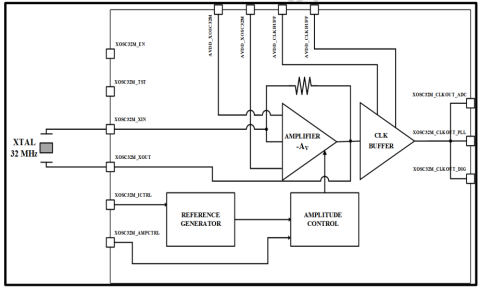

Block Diagram of the 32 MhZ Crystal Oscillator IP Core
