Display Stream Compression (DSC 1.2) Encoder
The Trilinear Technologies Display Stream Compression (DSC) Encoder offers real-time compression of high-definition streams with resolutions up to 8K. The core supports 8, 10, 12, 14 or 16 bits per pixel input using either RGB or YCbCr in 4:4:4 or 4:2:2 format. The DSC Encoder core integrates industry standard interfaces for host configuration and control, video input, and output.
View Display Stream Compression (DSC 1.2) Encoder full description to...
- see the entire Display Stream Compression (DSC 1.2) Encoder datasheet
- get in contact with Display Stream Compression (DSC 1.2) Encoder Supplier

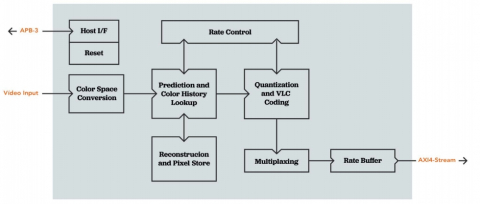

Block Diagram of the Display Stream Compression (DSC 1.2) Encoder IP Core
