Path tracing/Ray tracing accelerator
RayCore Lite IP is designed based on MIMD architecture. This approach enables more efficient execution of independent parallel tasks – each ray is regarded as an independent instruction. Due to this advantage, RayCore Lite with its ray tracing pipeline maintains ray tracing performance, regardless of ray coherence and scene characteristics and consequently supports real-time ray tracing. Accounting for most of the computations in Ray tracing graphics is part of the T&I (Traversal & Intersection test). Customers can achieve significant performance gain by replacing the tracking of the T&I portion with RayCore Lite, which already has a ray tracking solution.
View Path tracing/Ray tracing accelerator full description to...
- see the entire Path tracing/Ray tracing accelerator datasheet
- get in contact with Path tracing/Ray tracing accelerator Supplier

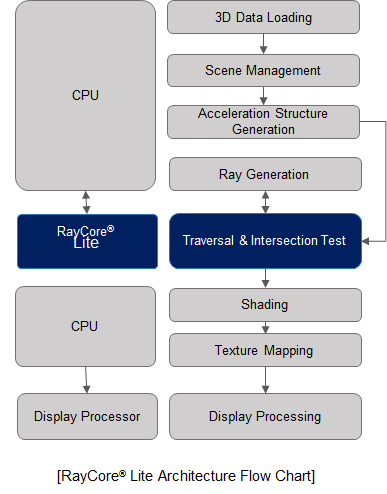

Block Diagram of the Path tracing/Ray tracing accelerator IP Core
