PIPE 4.3 compliant PHY Verification IP
azPHY 1.0 is a perfect solution to verify high speed interface serdes IPs that support the high speed standards e.g. PCIe, USB and SATA. This VIP consists of modular components viz. azPHY model, azMAC uvc and azPIPE interface analyzer. azPHY is a systemverilog based PIPE 4.3 compliant PHY model. azPIPE is a set of assertions to verify the correctness of the PIPE interface and azMAC is a UVC to mimic the controller behaviour.
View PIPE 4.3 compliant PHY Verification IP full description to...
- see the entire PIPE 4.3 compliant PHY Verification IP datasheet
- get in contact with PIPE 4.3 compliant PHY Verification IP Supplier

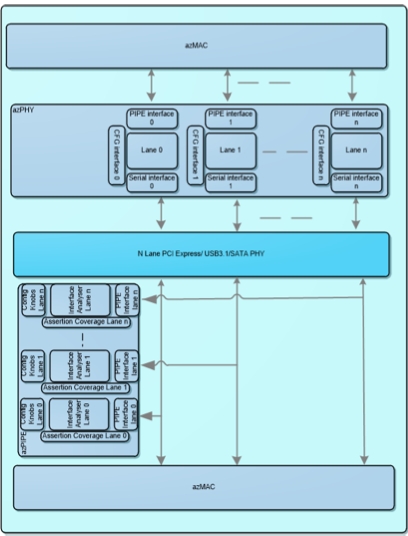

Block Diagram of the PIPE 4.3 compliant PHY Verification IP Verification IP
